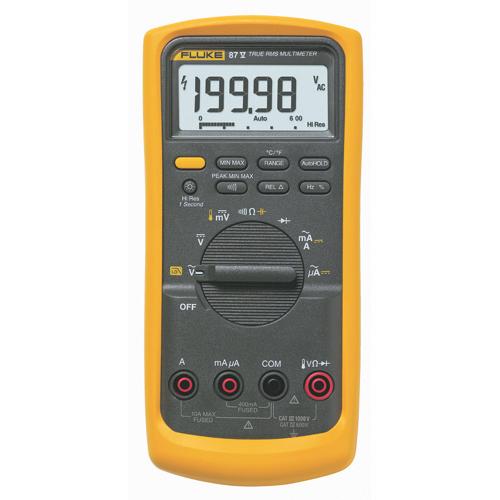

디지탈 멀티 테스터 - 1000V, 50㏁ (온도측정)

Function

Range & resolution

VDC

600.0mV, 6,000V, 60.00V, 600.0V, 1000V

±(0.1%+1)

0.1% 0.01mV

VAC

600.0mV, 6.000V, 60.00V, 600.0V,1000V

±(0.5%+2)

0.7% 0.1mV

ADC

600.0㎂, 6.000㎃, 60.00㎃, 600.0㎃, 4,000㎃, 6.000A, 10A

±(0.4%+2)

0.05% 0.1mA

AAC

600.0㎂, 6.000㎃, 60.00㎃, 600.0㎃, 4,000㎃, 6.000A, 10A

±(1.2%+2)

1% 0.1mA

Resistance

600.0Ω ~ 50.00MΩ

±(0.4%+1)

0.2% 0.01Ω

Conductance

60.00㎱

±(1.0%+10)

±(1.0%+10)

Capactiance

10.00 ㎋ ~ 9999 ㎌

±(1.0%+3)

 ±(1.0%+3)

Temature

-200.0 to +1090℃, -328.0°F to 1940°F

1.0 %

1.0%

Frequency

199.99 ㎐, 1.9999 ㎑, 19.999 ㎑, 199.99 ㎑

±(0.005%+1)

±(0.005%+1)

Feature

True-rms ac voltage and current for accurate measurements on non linear signals

Selectable filter for accurate voltage and frequency measurements on motor drives

0.05 % dc accuracy

6000 counts, 3-3/4 digits

4-1/2 digit mode for precise measurements (20,000 counts)

Measure up to 1000 V ac and dc

Measure up to 10 A, 20 A for up to 30 seconds

Built in thermometer lets you carry one less tool (TC probe included)

Frequency to 200 kHz and % duty cycle

Resistance, continuity and diode test

10,000 µF capacitance range for components and motor caps

Min/Max-Average recording with Min/Max Alert to capture variations automatically

Peak capture to record transients as fast as 250 µs

Relative mode to remove test lead interference from low ohms measurements

Auto and manual ranging for maximum flexibility

Touch Hold to capture stable readings avoiding noisy signals

Large display digits and two-level bright white backlight for increased visibility

Analog bargraph for fast changing or unstable signals

Input Alert provides audible warning against wrong use of input jacks

Improved selectable sleep mode for long battery life

Access door for fast battery changes without breaking the calibration seal

"Classic" design with new removable holster with built in test lead and probe storage
